Swing Beam Add On - Hardware-Only Kit

$130.00
Typically ships within 3 - 5 business days

PLEASE VERIFY YOUR ZIP CODE

Check if the product is available in your area to purchase.

Excellent, product is available in your area. Please click below to add to your cart.

Sorry but we don't currently service your area. If you have a different location you can ship to please try again.
Description

Kit Does NOT Include:

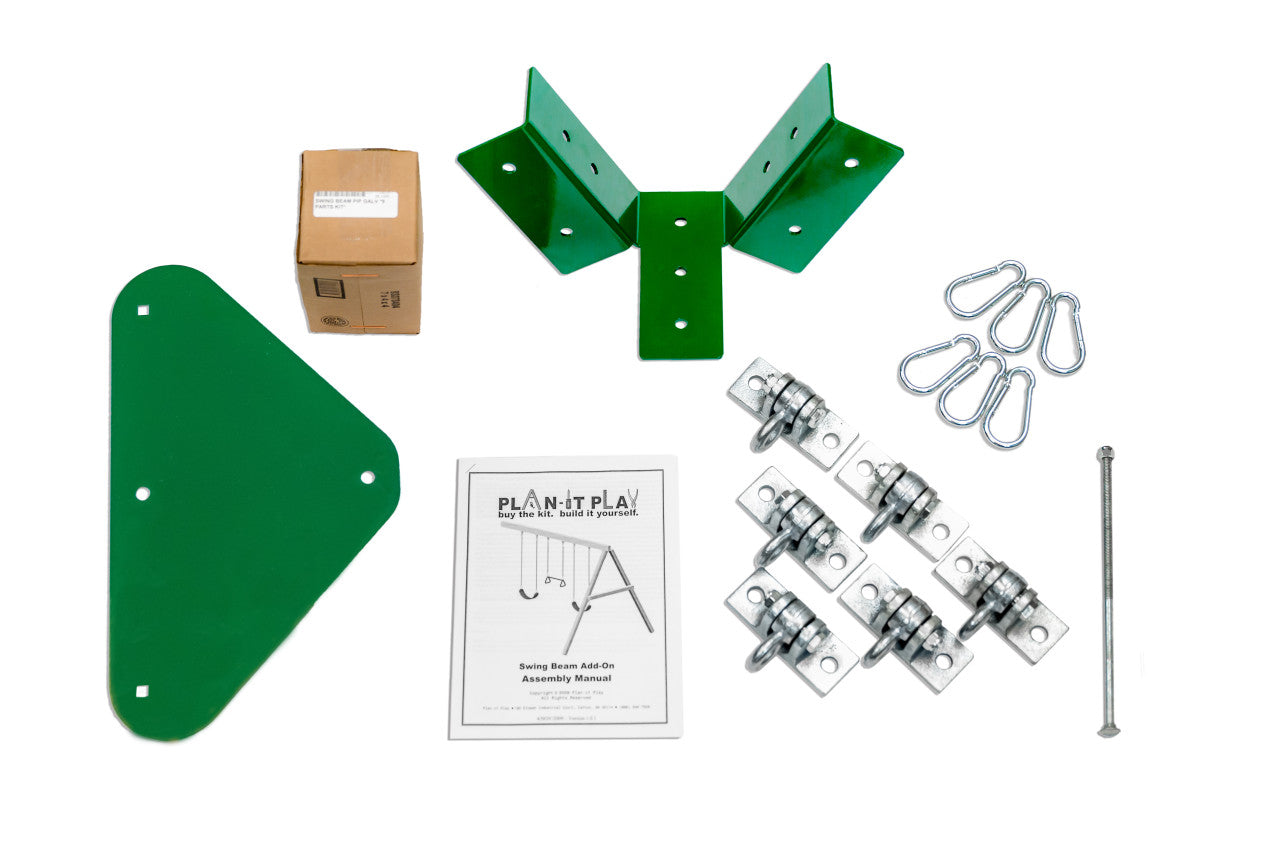

Kit Includes:

  • 1 A-Frame Bracket
  • 1 Triangle Support Brace
  • 6 Iron Ductile Swing Hangers
  • 6 Spring Clips
  • Swing Beam Hardware
  • Instruction Manual
Galvanized hardware:
Qty Type Size
6 Carriage bolt 6.5"
2 Carriage bolt 5.5"
4 Carriage bolt 4.5"
1 Carriage bolt 11"
1 Lag bolt 3.5"
2 Lag bolt 5"
13 Locknuts
13 Larger washer 1/2"
16 Small washer 3/8"

Lumber Requirements:
(or customize the lumber to fit your needs)
1 - 4 x 6 x 12'
2 - 4 x 4 x 10'
1 - 4 x 4 x 8'
1 - 4 x 6 x 8'







**FOR RESIDENTIAL USE ONLY**
Helpful Links

Assembly Manuals

Warranty
View details

**For Residential Use Only**

*Note - You may need to apply more than one gallon due to wood texture and porosity.

Prior to assembly, the entire playset area must be cleared & level within 3-in. For added safety we suggest leaving a 6’ safety perimeter surrounding your play set for fall zones; a minimum of 4’ around your play set is required. Customer is responsible for complying with any HOA regulations & restrictive covenants.
